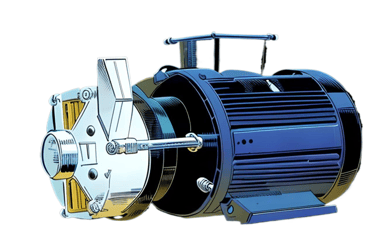

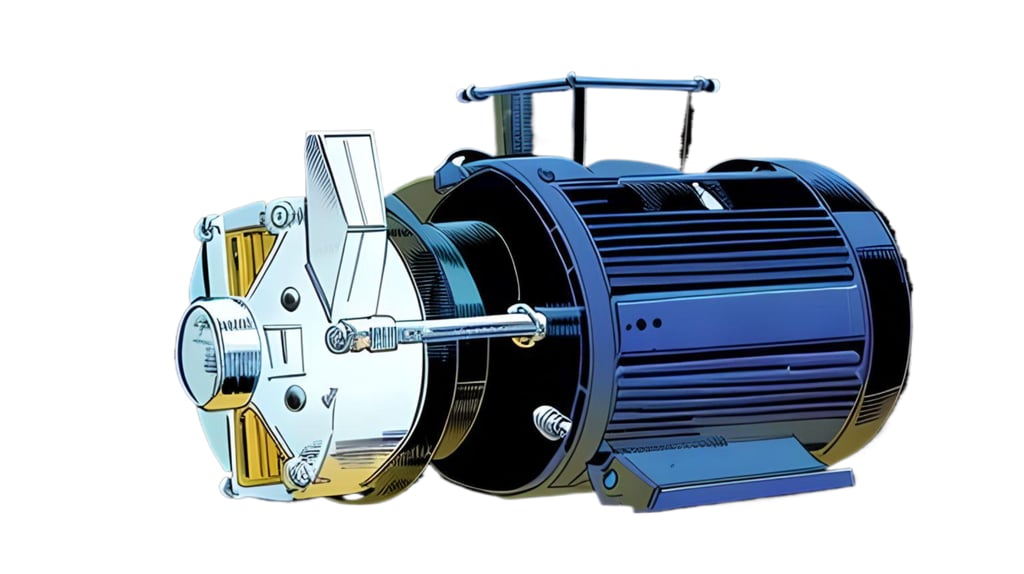

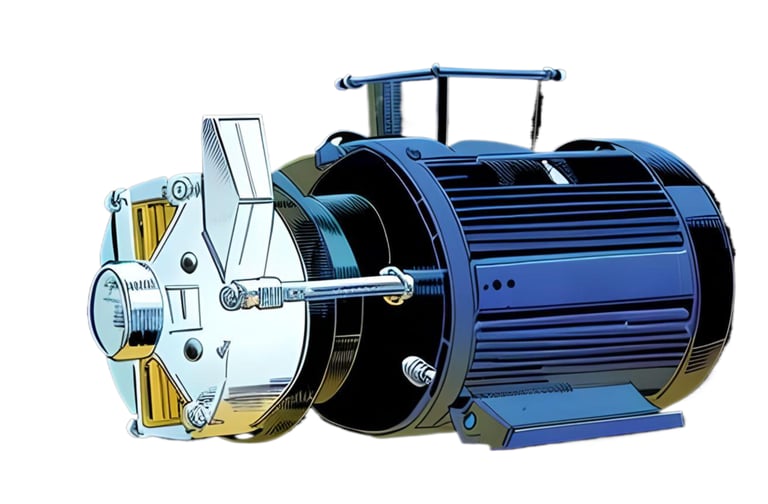

PP Chemical Pump

Seal less Magnetic Drive pumps in PP and PVDF construction

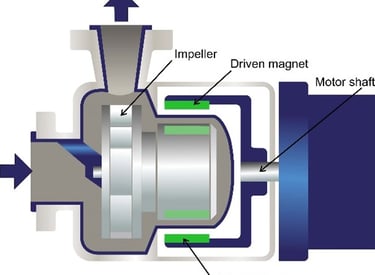

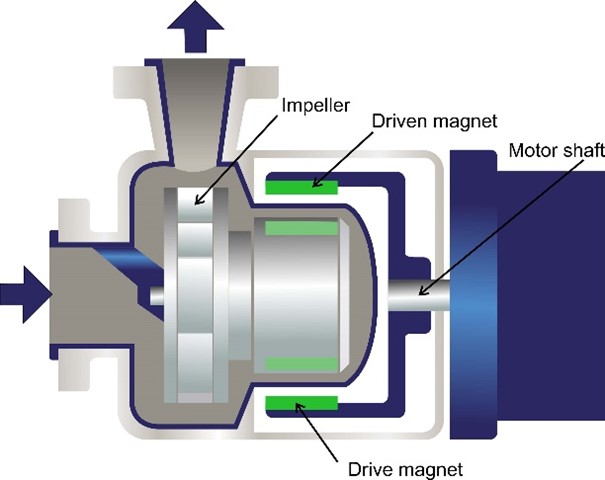

These magnetic drive pumps are completely leak-proof. The impeller rotates because of the magnetic drive, which eliminates the need for a shaft seal. In a magnetic drive configuration, high power permanent rare earth magnets provide excellent mechanical efficiency and negligible slippage. With their 100% leak proof design, these pumps are perfect for handling a wide range of chemicals, including corrosive ones, fuming and poisonous liquids, acids, electroplating chemicals, dyes, solvents, gasoline, kerosene, pharmaceuticals, and food syrups.

All Magnetic Drive Pumps are available in Monoblock type with Std

TEFC motor and Flame Proof motors

Material of Construction -

Poly Propylene Glass filled, PVDF (polyvinylidene fluoride)

Operating Temp-PP upto 80 deg C. PVDF upto 110 deg C

Features & Application

• 100% Leak Proof Pumps

• No Shaft Seal to maintain, replace

• High Efficiency due to permanent magnet power coupling

• Simple design, easy to operate & maintain

• Very useful for handling highly corrosive chemicals, plating chemicals

  toxic & fuming liquids

• Capacity from 10 LPM upto 750 LPM

• Head upto 40 mtrs.

• Moc in PP, SS316 & PVDF

• Special Pumps for high temp upto 150 degree C

• Caustic soda plants-Chlorinted Brine, Conc. HCL, Dilute H2SO4 etc.

• PHOSPHORIC Acid Plants :H3PO4, H2SO4, HF and their mixture with or without solid (gypsum) up to 40% conc.
